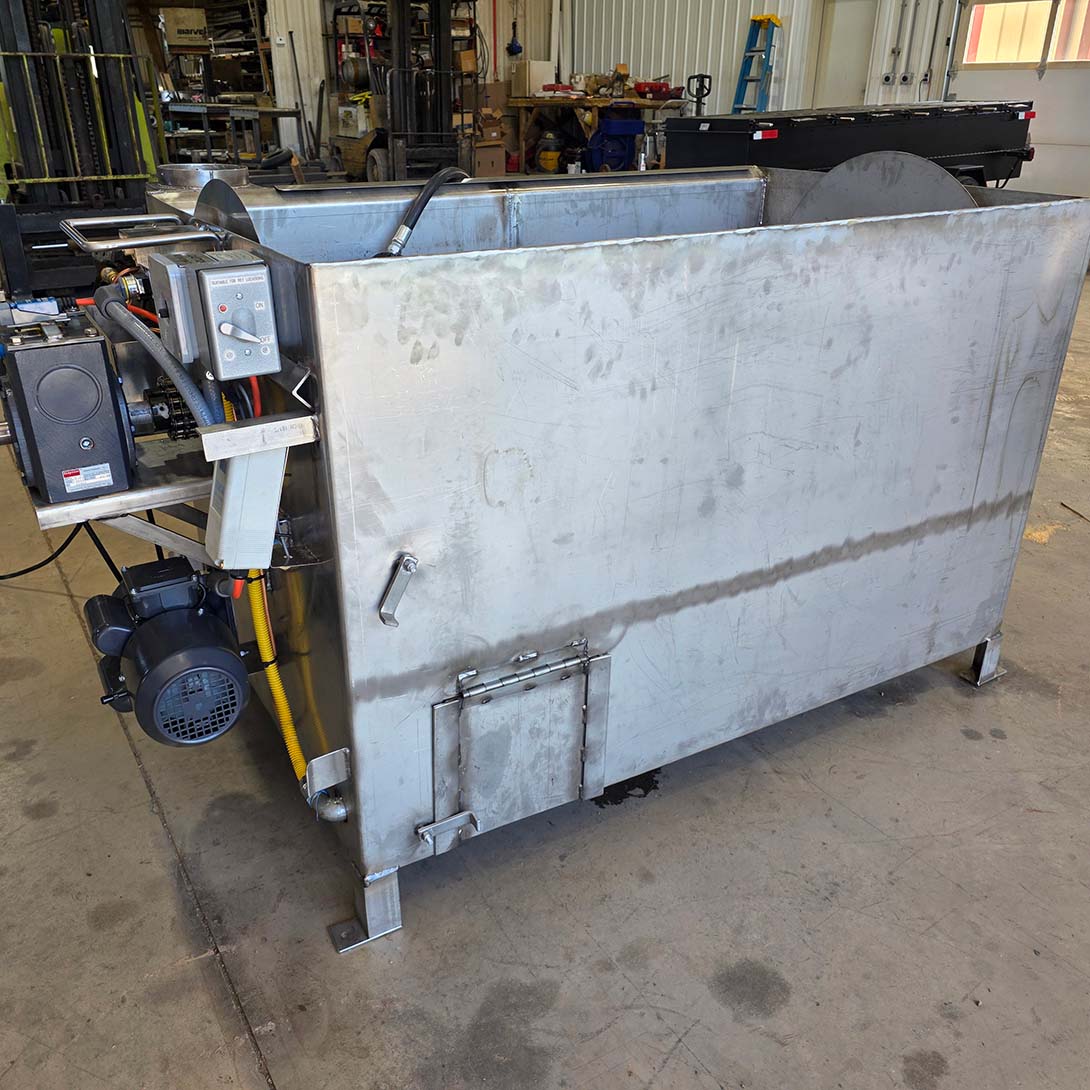

48″ Rotary Scalder

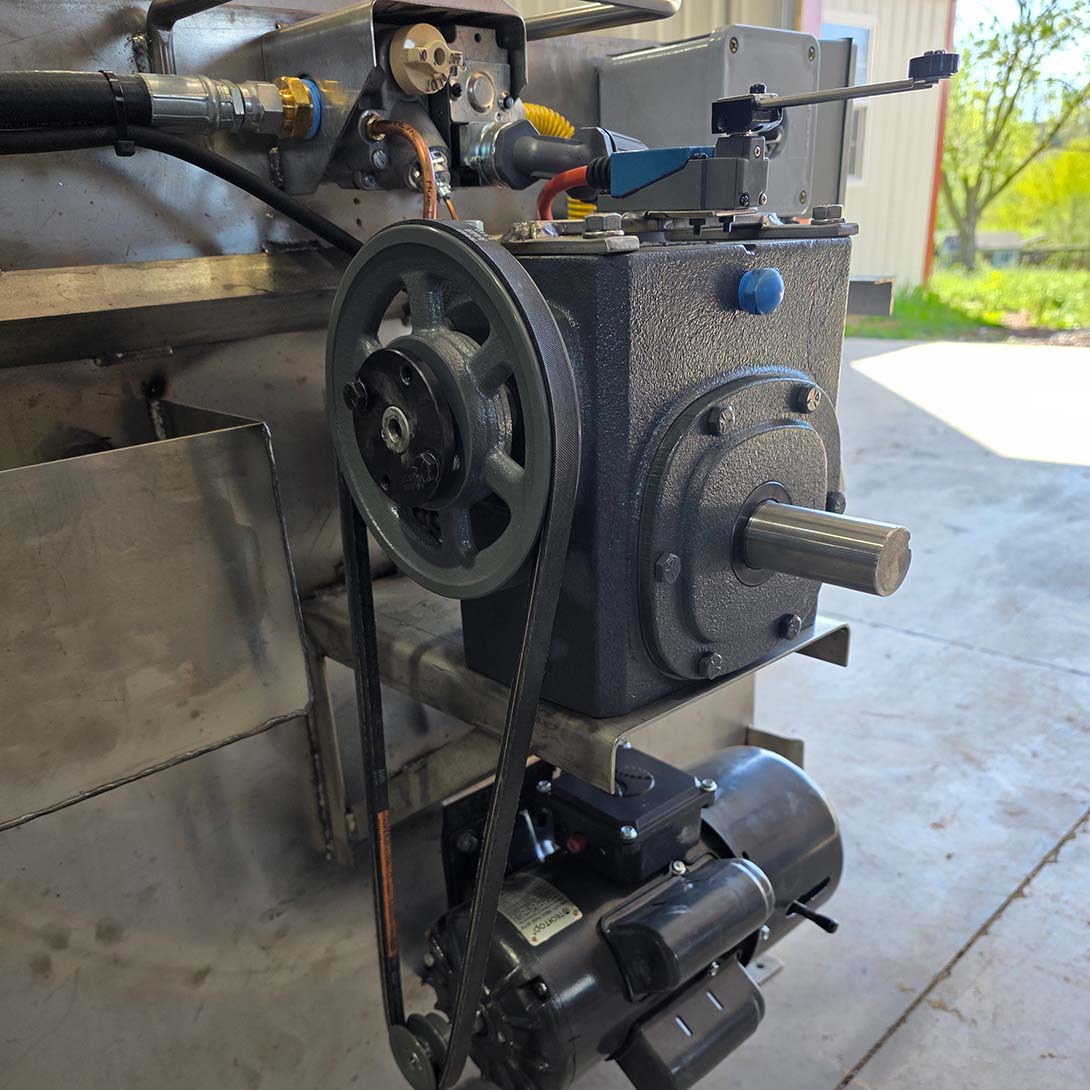

The 48″ uses a motor connected to a gearbox to power the rotation. The gearbox gives provides the strong lift. The rack on the smaller 30″ and 41″ scalders may drift a small amount when stopping; however, the gearbox configuration on the 48″ scalder allows the rack to stop in place (with no drift), and eliminates the need for a brake motor. The 48″ scalder differs from the 30″ and 41″ rotary scalders in two key ways. The larger tank size is obvious. The smaller 30″ and 41″ scalders use a low rpm gear motor and two belts to power the rotating rack.

Additional Specs:

• tank size: 48″x30″x22″
• Electrical: 20 amp circuit; 120 volt
• Heat source: Propane heat source standard. Request natural gas in the notes field at time of order.
• Burners: three 60,000 BTU Burners
• motor: 1/4 HP

Options:

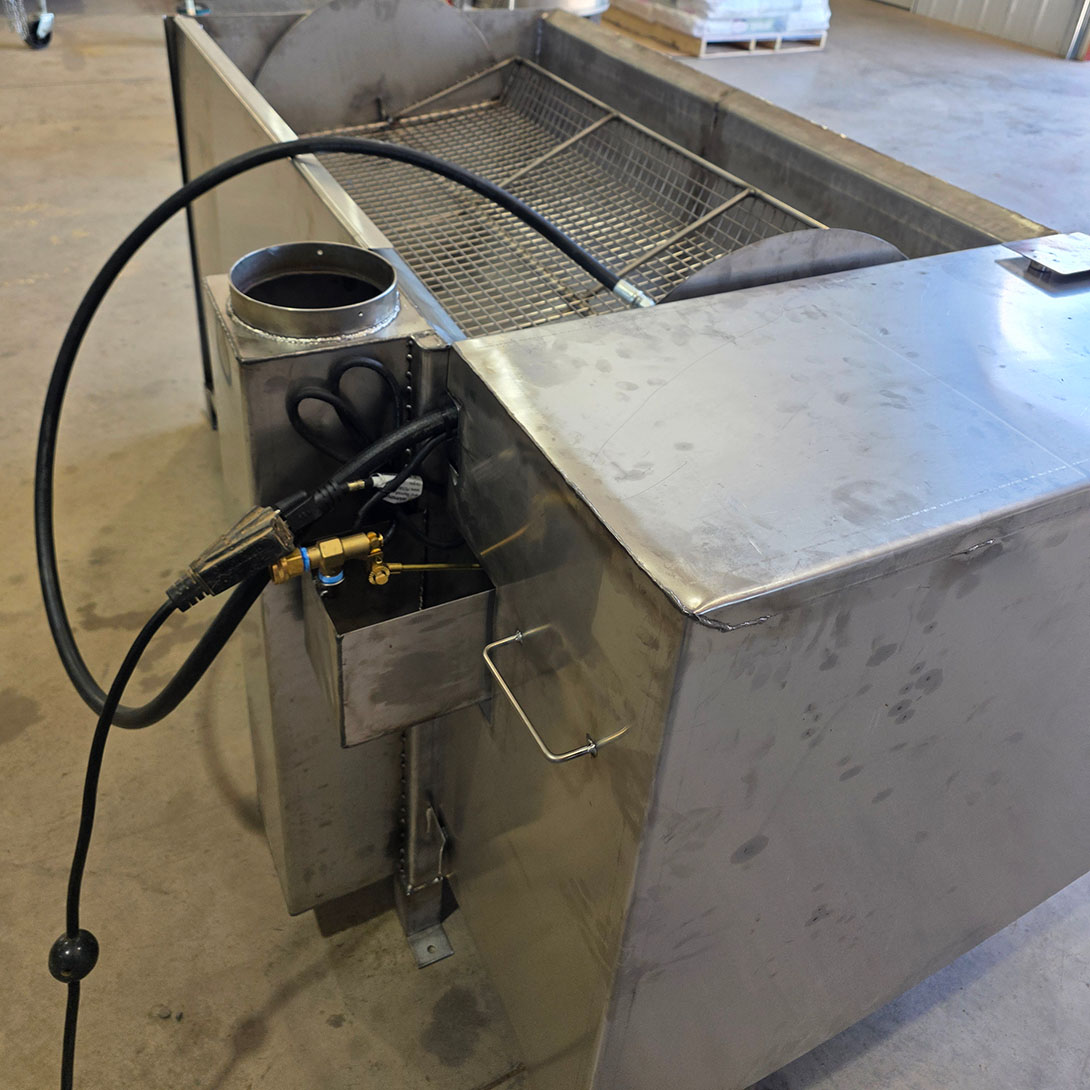

• Float & Overflow: Keeps water consistently full throughout the processing.
• Scalder table: additional work space on the right side of the scalder.
• Casters: 4 heavy duty stainless casters facilitates moving the scalder around the shop.
• Exhaust: Mounted on the side of the tank and exhausts heat. Comes with a 6″ ring to facilitate you connecting the exhaust on the scalder to the exhaust ductwork or vents in your facility.
